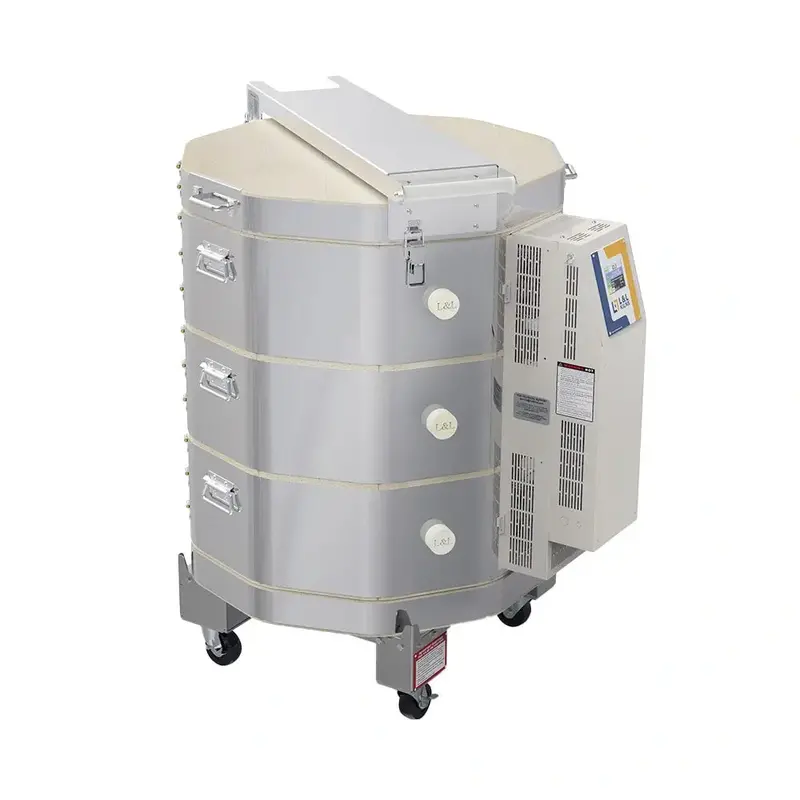

L&L EQ2327-3 Equad-Pro Kiln Bundle: Genesis Controller + Vent + Furniture

Description

L&L Kilns eQUAD-PRO PRODUCTION KILN eq2327 Package with Genesis, Vent,  Furniture Kit, and Free Lift-gate Service

HIGH FIRE PRODUCTION KILNS WITH QUAD ELEMENT SYSTEM

The eQuad 2327-3 is 6.7 cubic feet

The L&L Kilns eQuad Pro Series kilns are designed for heavy usage at high-fire temperatures.
They are rated Cone 10 with plenty of power for firing cone 6 and higher everyday!
These kilns feature Quad Element Design. The quad elements are super heavy-duty elements which wrap four times in each 9” high section. Quad elements and included 3 zone control ensure even firing top to bottom throughout your kiln.

Equad kilns include stand, peep hole plugs, easy to understand manual, an L&L hard ceramic element holders.
The lid is spring loaded for easy opening. When open, rests at an angle away from the kiln so that the loading is easy and unobstructed.
The floor of eQuad series kilns are reversible extending the life of your kiln !
L&L hard ceramic element holders are included. These protect the bricks from bumps and chipping.
Control: DynaTrol with 4 Easy-Fire programs, 6 Vary-Fire programs, PreHeat, Delay, Program & Segment Review, and Diagnostics. Two programs can be combined for one 16 segment program.
Warranty: Limited 3 year warranty.

• Electrical Specs at 240/1 (other voltage congigurations available)
• Amps:56
• Wire Connection: Direct Wire Connection (no cord)
• Wire Gauge for Connection: 4 Ga
• Branch Fusing: Branch Fused
• Element Wiring: Parallel
• Max Temperature: Cone 10, 2350F, 1290C

* { margin: 0; padding: 0; box-sizing: border-box; } body { font-family: Arial, sans-serif; background-color: #f5f5f5; padding: 15px; line-height: 1.6; } .container { max-width: 1400px; margin: 0 auto; background-color: white; padding: 20px; border-radius: 8px; box-shadow: 0 2px 8px rgba(0, 0, 0, 0.1); } .section-title { font-size: 1.5em; font-weight: bold; margin-top: 30px; margin-bottom: 15px; color: #333; border-bottom: 2px solid #f0ad4e; padding-bottom: 10px; } .section-title:first-child { margin-top: 0; } /* Table Wrapper for Responsiveness */ .table-wrapper { overflow- summary=””>

Model Number Part Number for 3” Brick Volts/Phase Watts Amps Wire Size Fuse Size eQ2327-3-240 (USA) K-Q-2327/31 240/1P 13440 56 4 ga 70 Amp eQ2327-3-240-3P (USA) K-Q-2327/32 240/3P 13440 32.3 8 ga 50 Amp eQ2327-3-208 (USA) K-Q-2327/21 208/1P 11684 56.0 4 ga 70 Amp eQ2327-3-208-3P (USA) K-Q-2327/22 208/3P 11684 32.3 8 ga 50 Amp eQ2327-3-220 (World) K-Q-2327/41 220/1P 12321 56.0 4 ga 70 Amp eQ2327-3-380-3PY (World) K-Q-2327/52 380/3PY 12321 18.7 12 ga 25 Amp
