Cone Art GX2827D Kiln with Genesis Touchscreen Control System

Description

TUCKERS/ CONE ART GX2827 KILN With Kiln Genesis Touch Screen Controller

• 10 cubic feet
• 28″ across X 27″ deep
• Double wall Insulation
• Kanthal A-1 Elements
• 208 or 240 volts
• 80 Amp Breaker required for 240/1
• CSA approved
• New Lid lifter Design at NO EXTRA CHARGE
• 3 Zone control at NO EXTRA CHARGE

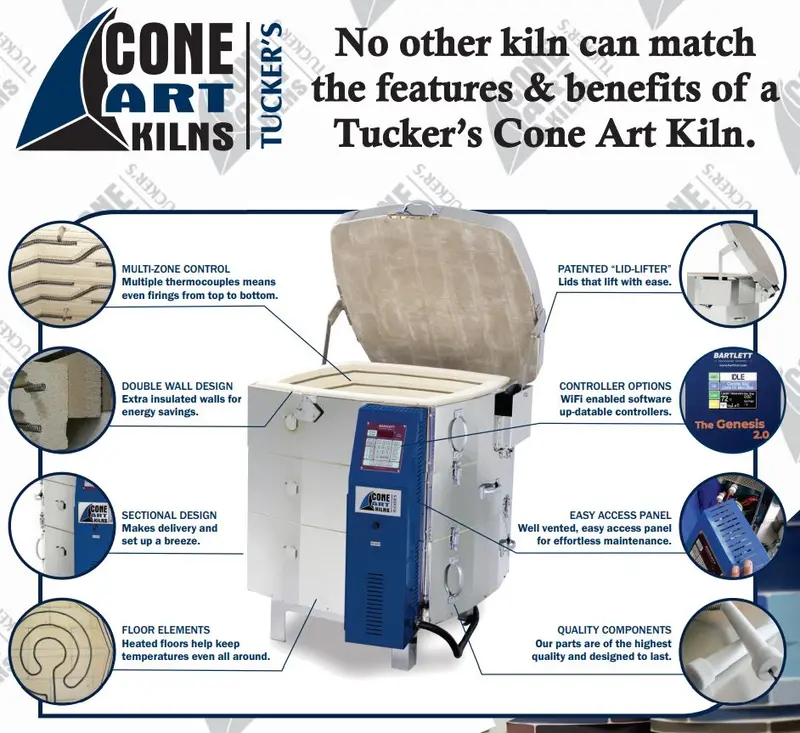

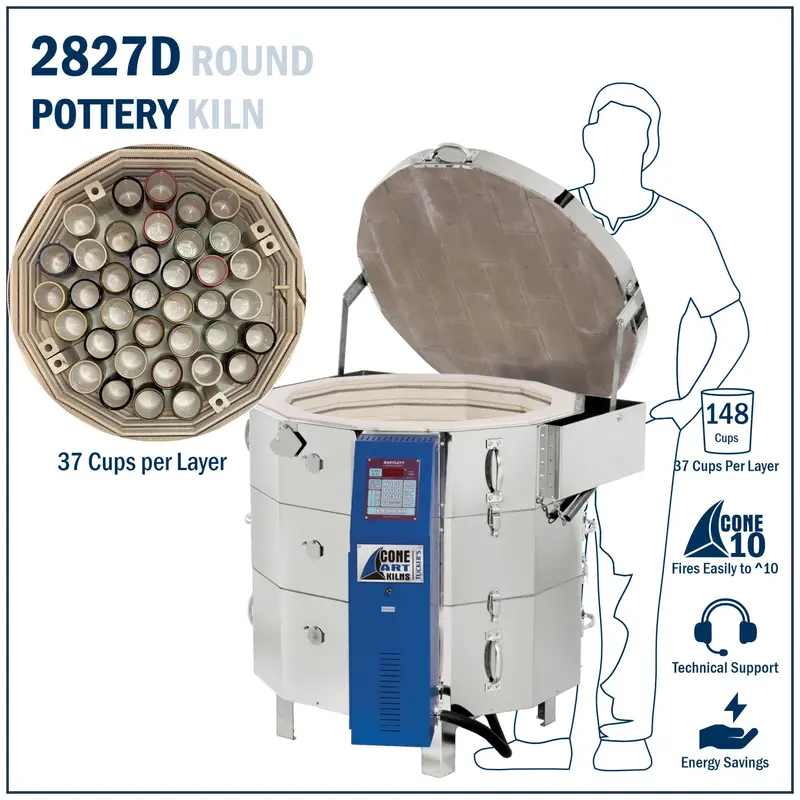

The Tucker’s Cone Art Kilns GX2827D is one of our most versatile and popular models. It is a true workhorse production kiln that has been designed to fire easily to cone 10 even with high mass loads like tiles.

It is a double insulated kiln with 2 ½” premium firebrick plus 1″ of block insulation in the walls and 3″ of brick in the lid and floor. This extra thick wall insulation ensures a cooler, safer jacket that will save you 32% in electricity costs when compared to a conventional 2.5″ wall profile and 19.3% when compared to a 3″ brick wall profile. It also gives longer element and electrical component life since the elements don’t have to work so hard to achieve the same heat work.That means big savings firing after firing, year after year.

GOOD FOR YOU! GOOD FOR THE ENVIRONMENT!

Heavy-duty Kanthal A-1 elements are installed in the walls and floor for perfectly even firings.

This kiln also comes with our NEW LID LIFTER at NO EXTRA CHARGE.

The BX 2827D is equipped with the 3 Zone BARTLETT Genesis Touch Screen Controller with wifi conectivity.

There is no other Kiln on the market today that can come close to matching all of these features.

Optional Extra Furniture Kit

High alumina,rated to cone 11

Eight 26″ dia. half shelves

Six each 1 3/4″ square X 1″,2″,4″,6″,8″ posts

Two kilograms kiln wash

SPECIFICATIONS

Technical Specification

* { margin: 0; padding: 0; box-sizing: border-box; } body { font-family: Arial, sans-serif; background-color: #f5f5f5; padding: 15px; line-height: 1.6; } .container { max-width: 1400px; margin: 0 auto; background-color: white; padding: 20px; border-radius: 8px; box-shadow: 0 2px 8px rgba(0, 0, 0, 0.1); } .section-title { font-size: 1.5em; font-weight: bold; margin-top: 30px; margin-bottom: 15px; color: #333; border-bottom: 2px solid #f0ad4e; padding-bottom: 10px; } .section-title:first-child { margin-top: 0; } /* Table Wrapper for Responsiveness */ .table-wrapper { overflow- summary=””>

Model Inside Dimenssions (Inches): W x L x H Sections Cubic Feet Ship Weight (LBS) Phase Amps 240V|208V Breaker Rqd CU Wire GA (AWG) KW 2827D 28×27 3 10 400

1

3

63 | 72.5

36.3 | 41.9

80A, 90A, 50A

4

6

15.1
